заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла

100 частей
MOQ
заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Материал: Карбид вольфрама
Заварка: Серебряная заварка
Твердый/паянный: Паянный
Переход: Море/воздух/выражают
размер: Нормальный размер
Форма: Виды форм
набор: случай 8pcs/набор
Применение: Вырезывание
Высокий свет:

серебряный сваривая заусенец карбида роторный

,

Файлы карбида инструментального металла роторные

,

Паяемый заусенец карбида роторный

Основная информация
Место происхождения: СЫЧУАНЬ, КИТАЙ
Фирменное наименование: KTS
Сертификация: ISO9001:2008
Номер модели: A/B/C/D/E/F/G/H/J/K/L/M
Оплата и доставка Условия
Упаковывая детали: Пластиковый случай
Время доставки: 7-30 дней
Условия оплаты: T/T, западное соединение
Поставка способности: 250000 часть/частей в месяц
Характер продукции

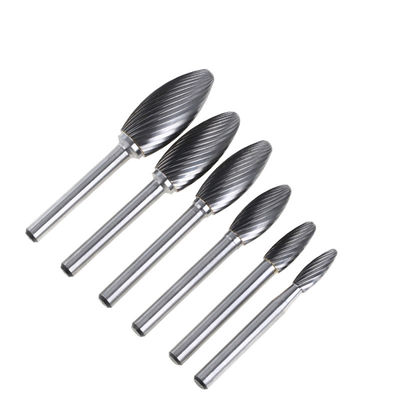

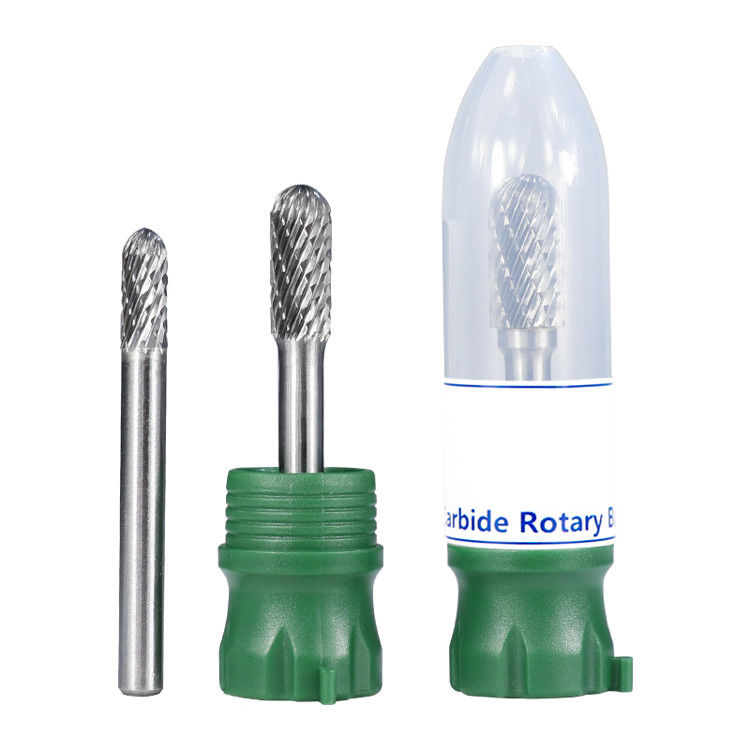

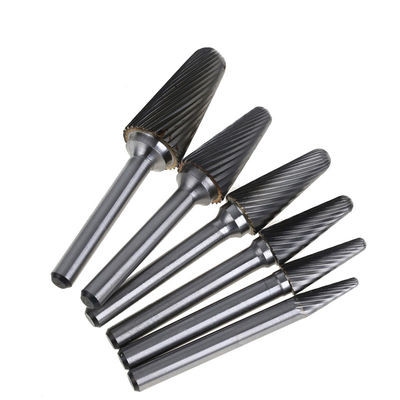

6mm Shank Tungsten Carbide Bur Carbide Rotary Files Rotary Burrs For Cutting Metal



Tungsten carbide burr cutters:



1. Tungsten carbide burs keep on excellent quality
2. More than 100 specifications is developed to satisfy your fully professional requirement on grinding;
3. You can choose 3 different surface color (self-colored & not plated; Silver & nickel plated; Gold & Ti plated);
4. Keep the surface clean (Oil on surface have been got rid of by Ultrasonic);
5. Carbide bur got different shapes, you can choose sizes, grain & length)

For example one item:

Item code: E122006
Shape: Oval
Material: Tungsten Carbide
Head Size:12x20mm
Shank Size: 2.35mm(3/32"), 3.0mm, 3.17mm(1/8"). ,6.0mm, 6.35(1/4") and 8mmFlute: 5-Axis CNC grinding Machine made, Double Cut
Grade: YG8 orYG6 both available
Welding: Silver Welding


Product Description


The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to grind flat surfaces on metal and non-ferrous metal applications.

Build
Excellent for light to medium material removal.

This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.


Operation


Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.

To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.



Technical date



S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000



заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла 0



Our factory



ZIGONG(CHENGDU) JOINT CARBIDE CO., LTD is subsidiary of ZIGONG JOINT CARBIDE CO., LTD a professional manufacturer of tungsten carbide rotary tools and carbide material. We have two subsidiary companies, one is in Chengdu city, Sichuan Province and the other one is in Zigong City, Province.



Founded in 2007 at Zigong City, Sichuan Province. In China, we are the exclusive factory who has equipments from raw material to finished tools producing. Including Inclinable Wet Milling, Pressing, Low Pressusring Sintering, Five-axis CNC, Electronic Tool Surface Scanner, Hard and TRS Testor. The main products include Carbide burr/ Carbide burr blank/ Carbide rod, and Carbide nozzle. We exported to North America, Europe, Asia and so on. We've been contributing to make high class cheap products to the world.



заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла 1

заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла 2

заусенец карбида хвостовика 6mm серебряный сваривая роторный для инструментального металла 3
